Caravan Angel (CT1) Caravan Tracker – up to 3 year battery life

Caravan Angel (CT1) Caravan Tracker – up to 3 year battery life

£105.00£244.00

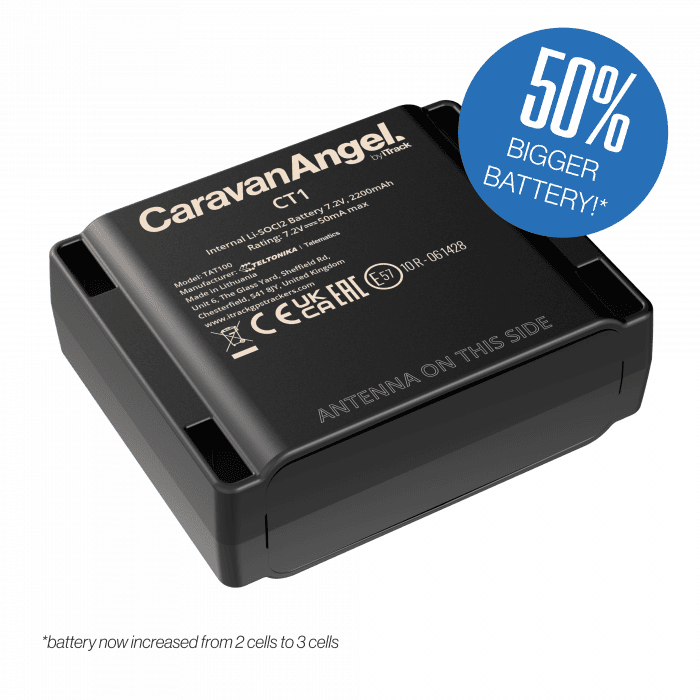

The Caravan Angel is a dedicated caravan tracking device that can be discretely installed anywhere within the caravan without any obvious sign of installation.

The robust design and IP67 waterproof rating make the Caravan Angel perfect for covert installations on practically anywhere. The wireless nature of the device means that it can be very well hidden where it would be extremely difficult to thieves to locate and remove. The smart sleep feature means that tracker jamming devices are unlikely to work when the device is in hibernation.

Caravan insurance companies often refuse to pay out for many reasons so in many cases, recovery is the your best chance of avoiding significant financial loss. In the unfortunate event of theft, it would be easy to locate your caravan to within a few metres using the Caravan Angel.

Many caravans are kept in storage meaning the owner has no way of knowing if their pride & joy is safe and where it should be. After installing a Caravan Angel, you will be able to create a zone around your storage site and be alerted if the caravan was to leave the zone without your authority. You can also use the iTrack Live app and  web-based tracking platform to  see the caravan location on Google Maps.

Boasting a specialist LI-SOCI2 battery that can withstand extreme temperatures and resists battery drain, the device can last up to 3 years depending on the tracking interval configuration. By default, the device will record a location every 24 hours while stationary, and every 15 minutes once movement is detected. The battery will last approximately 1000 location records – so 1000 days if scheduled to report once per day.

The device comes with a free 14 day trial subscription to iTrack Live.  Once the trial period expires you will need to purchase a Connect+ subscription which will give you all inclusive connectivity including all SIM card data, multi-network roaming, international roaming in over 120 countries and 90 day historical tracking data cloud storage.

Description

Features

+ Quick & Easy Installation with quick start guide included

+ Plug & Play – Ready to use out of the box*

+ Extra long life LI-SOCI2 battery – up to 3 years (replaceable)

+ Smart sleep makes device extremely difficult to be detected by thieves

+ Tow-Away detection

+ View historical location data

+ Geozone boundary detection

+ Customise moving/parked tracking intervals

+ Magnetic mounting accessory (sold separately)

+ Free iOS/Android App

+ Dimensions: 78mm x 63mm x 28mm, Weight:119g

*iTrack Live Connect+ subscription required

Connecting the Caravan Angel

Installing the Caravan Angel couldn’t be more simple – simply switch on the device, covertly install in your caravan and add to your iTrack Live account and it will automatically begin reporting location data. That simple.

Battery Replacement

Replacement batteries are available to purchase separately via our website. Please see instructions below on how to replace the battery – special care must be taken not to damage the PCB – we are not responsible for damage caused by battery replacement.

Caravan Angel battery replacement instructions

iOS/ Android App

The iTrack Live app is free to download from the App Store (iOS) and Google Play (Android).

Click to download from App Store







Product Specifications:
HARDWARE
Module Teltonika TM2500
Technology GSM/GPRS/GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Location Sources GNSS, LBS
Receiver 33 channel
Tracking sensitivity -165 dBm
Cellular Quad-band GSM 850 / 900 / 1800 / 1900 MHz
GPRS Multi-Slot Class 12 (up to 440 kbps)
GPRS Mobile Station Class B
Power Extremely low self-discharge Li-SOCl2 replaceable battery, 7.2V 2200mAh (15,84Wh)
Antenna GNSS antenna (Internal High Gain), GSM antenna (Internal High Gain)
Interface Ultra-low-power Bluetooth BlueNRG-232 chipset, 2.0 micro-USB, Internal eSIM slot,
128 MB internal flash memory (220‘000 records), “Reset” button
Sensors Integrated Accelerometer
External Bluetooth Sensors (up to BLE 5.0)
SOFTWARE
Data sending Main, Duplicate and Backup servers
Protocols UDP/TCP/SMS
PHYSICAL SPECIFICATIONS
Dimensions 78 x 63 x 28 mm (L x W x H)
Ingress Protection Rating (pending) IP67
CERTIFICATION & APPROVALS
Regulatory CE(RED), EAC, RoHS, REACH

Additional information

Weight 0.20 kg
Dimensions 7.8 × 6.3 × 2.8 cm
